REDUCTION IN LOAD DISTANCE : OUR weighbridge can be easily install, dismantled and re install within a short span of time, it can be constantly transfer to nearest area of use . This will help in reducing lead distance, reduction of handling cost, manpower, and appreciable improvement in productivity.
EASY TO MAINTAIN : As OUR is a rugged design and the system has surprisingly ease of operation under most harsh condition. The down time due to break down is almost nil and hence the loss due to break down is also almost nil.
DIFFERENCE: Our modular design which comprises of a fully welded modules rating of the system due to loose nut & bolts is totally avoided. Such type Being a modular design the length of the weighbridge can be extended or reduced suiting the site conditions and so no need to keep separate leads to inconsistency and inaccuracy in weighing.
WARPING OF PLATES : The top deck plate is fully welded and well supported by cross beams within a span of 1 meter; hence they are rigid and sturdy avoiding warping or bending of plates. This avoids replacement. Top deck plate, saving lot of time, money and work output. Since it is rugged the life span is also very high.
EASY TO MOVING : This mobility help in reduction of inventories and capital cost.
BEST FOR ACCURACY : OUR Product is a highly innovative system, as we as use state of art electronic and structural design. Consistent accuracy is a basic necessity of any weighbridge. Even little inconsistent measurement will result in loss of several hundred kilograms of materials everyday, which can amount from thousand to any amount depending the value of material.
SOME FEATURES OF MODULAR WEIGHBRIDGE IN COMPARISON WITH THE NORMAL PITLESS TYPE WEIGHBRIDGES :
This weighbridges can be easily dismantled and re-erected in a new location in a Short span of time. Transportation of the modules can be arranged through a normal Truck.
weighbridges are modular type. Hence they have the advantage of future up-gradations by simply adding a module or two to have a longer platform. This is not possible in conventional type of weighbridges.
Conventional type weighbridge has 2 main longitudinal members. Whereas the modular type weighbridge has 4 main longitudinal members. Structure is more strong, yet sleek.
Weighbridges are fitted with load cells which supports the structure through a special arrangement. This ensures the structure swings in order to avoid the shock loading transferred directly to the load cell, on a dynamic force created by a moving truck over the platform and thereby load cell accuracy is sustained for a longer period.
In weighbridges, the chances of getting rusted is less as the modules are seamlessly welded and rain water and slush cannot find their way to the under chassis of the weighbridge which will definitely reduce the maintenance cost.
Weighbridge is modular in structure, fully welded and strong to take care of the designated load. The loose parts such as girders, plates and transoms in a conventional weighbridge and the main girders in a surface mounted type have a relative movement due to cyclic loading of truck weighing, though they are held by fasteners. In the long run, this effect leads to wear and tear of the parts and the same need replacement. weighbridge comprises of modules which are fully welded and have no loose parts, hence the effect of cyclic loading does not cause any problem and thereby keeping y maintenance cost to a minimum.
The Pit less weighbridge with I beams and Plates or a surface mounted type has a minimum 4 load cells support in all corners and the I beams r has long span and hence is subject to bending in the middle. This bending give effects to the load cells out put of its vertical position, resulting in load loss due to angular force over the load cell.
In a typical surface mounted type weighbridge, the structure is supported with load cells through good quality load cell assembly which holds the structure rigidly and thereby the shock load due to dynamic force created by a moving vehicle is directly transferred to the load cells which not only reduces the life span of load cell, but also leads to erratic performance of load cells in time period.
This weighbridge does not require an elaborate civil foundation work as in the case of a Conventional weighbridge. weighbridge could also be installed permanently on a hard surface with a concrete mat or on M.S. Plates under the load cell points and the ramps.
All the weighbridges available Pit or Pit less type must requires civil work foundation of minimum cost of Rs. 1 lakhs to Rs.5 Lakhs depend of length of weighbridge. This could be minimized to a great extent by installing modular type weighbridge. Our modular weighbridge could be installed as a pit mounted or pitless type permanently in a site if required at site . We hope that y choice of adapting a latest technology in weighing solution is much brighter and hence, we kindly request you to consider offer favorably.

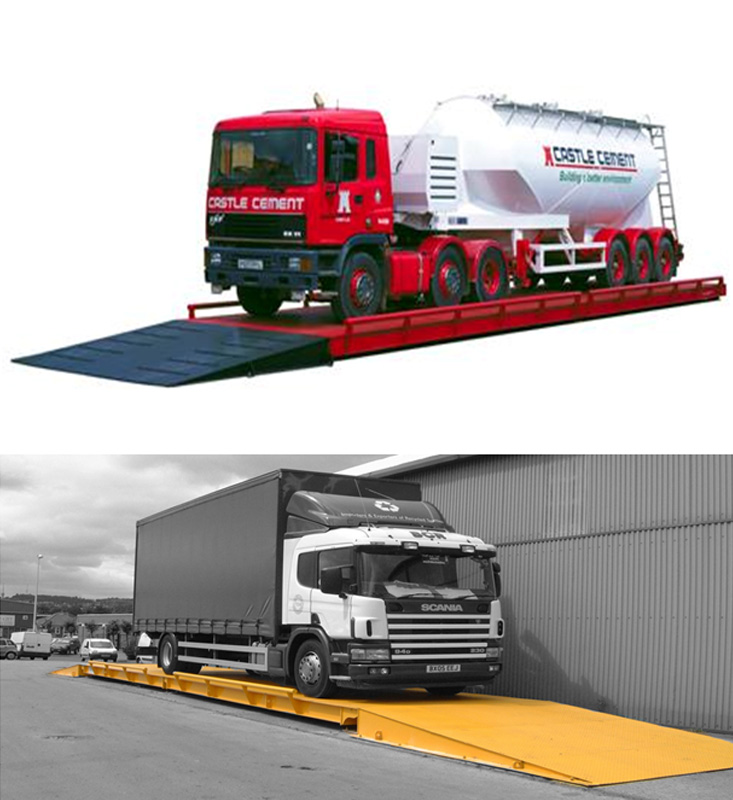

MODULAR TYPE WEIGHIRDGE VIEW :
