Products


Mechanical Weigh-bridge


       Capacity : From 1000 kgs. To 1,20,000 kgs.
Platform Size : 1200mm X 1200mm to 18000mm X 3000mm.

Types of Mechanical Weigh-bridge

3-LEVEL SYSTEM



  "MANSI" Lorry Weigh bridges are manufactured according to IS 1436-1960 and other relevant IS specifications and Weights & Measures Acts and Rules.


  LEVER Grey Iron Castings & M.S. Steels.


  PLATFORM Made of 12 mm Steel Plates with welded M.S. Strips on the top and it is bolted on girders.



5-LEVEL SYSTEM

  KNIFE-EDGES & BEARINGS All knife-edges & Bearings are made from EN-31 Alloy Steels.



  STEELYARD The notches are machine cut & a notch protection bar is provided as also a looking device.



  Index The Index strip is suitably inclined for easy reading.



  STRENGTH Robust in construction with ample safety margin above weighing capacity


  PAINTING All metals parts have two coats of good Bitumen Paints.




:: Steel Yard Indicator ::

* Easy To Operate * Sustained accuracy * Complies with IS : 1436 - 1960
* Heavy duty non-skid platform * 3,5 & 7 Lever System * Higher Performance and long life
* MANSI Stands for Durability and perfect performance.


CAPACITY

PLATFORM SIZE

MAJOR BAR

MINOR BAR

3000 kgs.

1500 X 1800mm ( 5' X 6' )

3000 X 100 kgs.

100 X 1 kg.

5000 kgs.

2400 X 1800mm ( 8' X 6' )

5000 X 200 kgs.

200 X 1 kg.

20000 kgs.

6000 X 2400mm ( 20' X 8 ')

20000 X 1000 kgs.

1000 X 5 kg.

25000 kgs.

6600 X 2400mm ( 22' X 8' )

25000 X 1000 kgs.

1000 X 5 kg.

30000 kgs.

6600 X 2400mm ( 22' X 8' )

30000 X 1000 kgs.

1000 X 5 kg.

30000 kgs.

6600 X 3000mm ( 22' X 8' )

30000 X 1000 kgs.

1000 X 5 kg.

30000 kgs.

7500 X 3000mm ( 25' X 10' )

30000 X 1000 kgs.

1000 X 5 kg.

30000 kgs.

9000 X 3000mm ( 30' X 10' )

30000 X 1000 kgs.

1000 X 5 kg.

40000 kgs.

9000 X 3000mm ( 30' X 10' )

40000 X 1000 kgs.

1000 X 5 kg.

40000 kgs.

9600 X 3000mm ( 32' X 10' )

40000 X 1000 kgs.

1000 X 5 kg.

40000 kgs.

10500 X 3000mm ( 35' X 10' )

40000 X 1000 kgs.

1000 X 5 kg.

50000 kgs.

12000 X 3000mm ( 40' X 10' )

50000 X 1000 kgs.

1000 X 10 kg.

60000 kgs.

12000 X 3000mm ( 40' X 10' )

60000 X 1000 kgs.

1000 X 10 kg.

60000 kgs.

13500 X 3000mm ( 45' X 10' )

60000 X 1000 kgs.

1000 X 10 kg.

60000 kgs.

15000 X 3000mm ( 50' X 10' )

60000 X 1000 kgs.

1000 X 10 kg.

M 100000 kgs.

18000 X 3000mm ( 60' X 10' )

100000 X 1000 kgs.

1000 X 10 kg.





We are a manufacturer & exporter of electro-mechanical Weigh bridges.


VIEW ELECTRO MECHANICAL WEIGHBRIDGE

ELECTRO MECHANICAL WEIGH BRIDGE
(LETEST SYSTEM OF CONVERSION FROM MECHANICAL WEIGHBRIDGE TO MODERN ELECTRONIC WEIGHING SYSTEM)

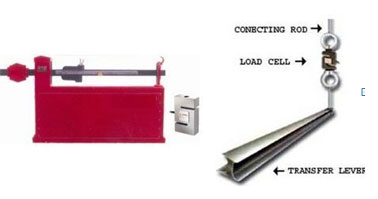

WE DO ANY TYPE OF CONVERSION FROM MECHANICAL WEIGHBRIDGE INTO MODERN ELECTRONIC WEIGHING SYSTEM WITH ELECTRONIC CONVERSION KIT ( I.T. SYSTEM BASED OR P.C. BASED WEIGH SYSTEM IS POSSIBLE IN BOTH THE MODELS. We are adding a single "S" TYPE Load cell on connecting rod of transfer Lever.

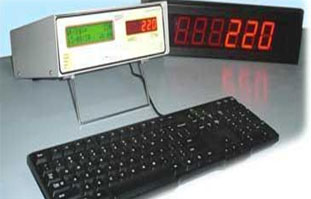

ELECTRO-MECHANICAL CONVERSION KIT-(OPTION A) Intelligent Terminal Based system:-

Salient Features... 'S' Type Load Cell



Intelligent Terminal Systems (I.T. System )
Weight Printout facility
Auto Calibration facility
Jumbo Display ( extra display )

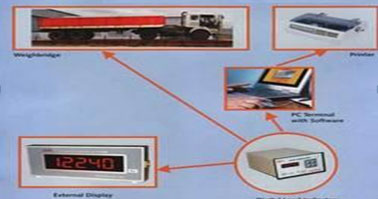

ELECTRO-MECHANICAL CONVERSION KIT- ( Option B) Rs 232 system with Digital weight indicator system:-


Salient Features... 'S' Type Load Cell

Digital Indicator with RS232 Interfacing Systems
Customised weighbridge Software
Dot-Matrix Printer
1 Jumbo Display ( extra display )
