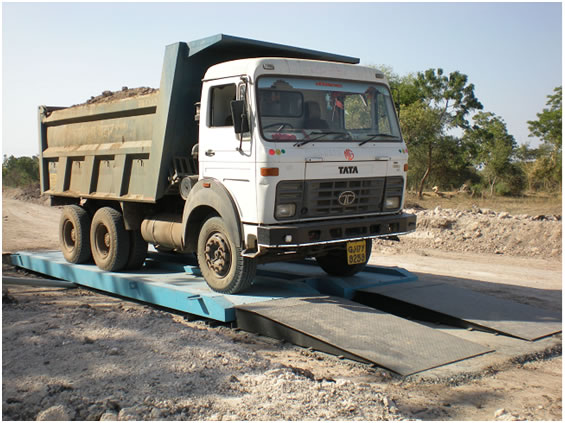

MOBILE (MOVABLE ) WEIGHBRIDGE



Mobile weighbridge needs no foundation, just smooth hard surface on which the load cell plates rest. This saves lots of cost and time. Standard weighbridge foundation and installation takes 2-3 months while mobile weighbridges can be installed in 2 hours. These weighbridges can also be shifted to another site easily. The modular design helps in easy cost effective transportation and re-installation.

These are steel fabricated modular platform supplied complete with ramps. The top plate is steel checkered. Machine comes with the bottom frame which is steel fabricated. The load cells are installed between the bottom frame and the top frame. The bottom frame substitutes the traditional foundation. The bottom frame just needs a smooth hard surface on which it rests.

Benefits : Costly pit construction is eliminated.
  • Modular Design- Machine supplied complete with platform, bottom frame and ramps
  • Needs no foundation
  • Installation in hours
  • Can be shifted to an other site easily
  • Keeps vigil on costly materials
  • Significantly saves time & construction costs
  • Most suited for temporary sites

In Pit less weigh bridge RCC ramp work must be required at least 3 meters for both side for easy movement of vehicle.
Mobile Weighbridges We offer clients a wide range of mobile weighbridges. These are fully certified, totally mobile and self-contained unit that can be set up at virtually any location within minutes. Further its innovative designs also allow it to be towed by truck-tractor unit, or by tractor using a front dolly, thus reducing the involved transport costs. The products offered under this category include:

   Special Features :

  1. Steel fabricated modular platform support O.I.M.L. Standards/B.I.S. Standards or other
  2. Standards laid down by department of Mass metrology Govt. Of India including IP 68 Protection standards. Ted by ramps
  3. Anti skid duly ribbed top plate
  4. Steel fabricated bottom frame based on evenly placed joists to form grid network as
  5. Well as support to platform beneath


   Useful For :
  1. Construction & Infrastructure
  2. Forestry
  3. Rubbish for landfill sites
  4. Loading materials
  5. Demolition materials ex site
  6. Agriculture industry
  7. 7 Quarries
  8. Movalbe sites

    Size and Capacities




Capacity (Ton)

Platform Size

Number of Modules

Number of Load cells

40t/50t/60t

7.5 x 3 m

1

4

50t/60t/80t

12 x 3 m

2

6

50t/60t/80t/100t

15 x 3 m

2

6

60t/80t/100t

16 x 3 m

3

8

60t/80t/100t

18 x 3 m

3

8

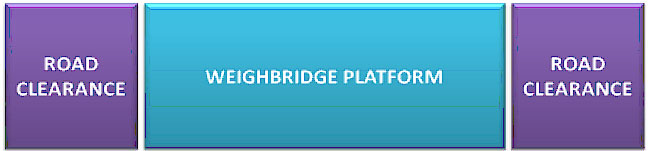

Deteil's of Require Road Clearance For Weigh Bridge




Weighbridge Size

(Meters)

Road Clearance Required

(Feet)

4.2 x 2.4 m

40

4.85 x 2.4 m

50

6.09 x 2.4 m

64

6.7 x 3 m

70

7.5 x 3 m

80

9 x 3 m

100

10 x 3 m

120

12 x 3 m

150

14 x 3 m

170

15 x 3 m

175

16 x 3 m

190

18 x 3 m

200

20 x 3 m

240

22 x 4 m

260

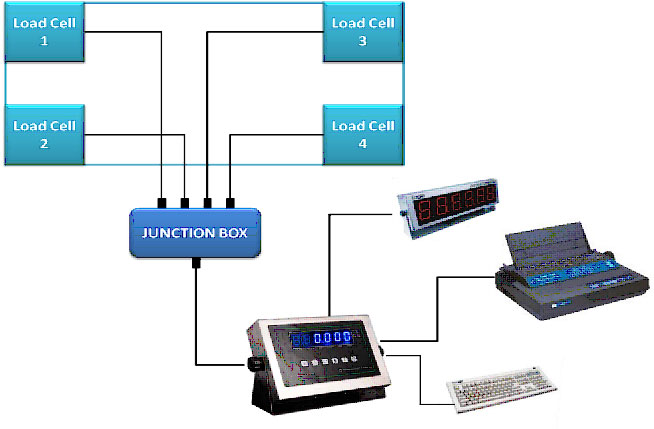

WEIGHBRIDGE GENERAL ARRANGEMENT
