MFG & EXPORTERS :
ALL TYPES OF WEIGHBRIDGES, WEIGHING SCALES, WEIGHING & INDUSTRIAL AUTOMATIONS &MATERIAL HANDLING EQUIPMENTS |
|
|
Products |
| Weighing Automation |
| |
Bag Filling |
 |
| |
We, are well-versed with changing market trends and have the capabilities to design, develop, and manufacture bag filling machines that suit to varied industrial applications. These bag filing machines are used to fill granules/powders in bags. Their unique designs make them suitable for production in large scale packaging lines. We offer bag filling machines with many features some of them are listed as below: |
|
| |
|
|
| |
Features |
- Latest Micro Controller based design.
- Rugged construction
- Heavy Duty Load Cell for rough handling
- Coarse and fine feed for better accuracy
|
|
|
| |
|
|
| |
Capacity |
Resolution |
25 Kg |
10 g |
50 Kg |
20 g |
75 Kg |
50 g |
100 Kg |
100 g |
500 Kg |
100 g |
1000 Kg |
500 g |
|
|
| |
|
|
| |
Technical Specifications  |
|
|
| |
|
|
| |
Fill Accuracy |
Better than + / - 0.1% FSR |
|
|
| |
Display |
13 mm height (7 segments LED) |
|
|
| |
Load Sensor |
Strain Gauge Based Load sensor |
|
|
| |
Fill Mode |
Auto/Manual |
|
|
| |
No. of Fillings |
6 fillings per minute (Depends on flow available) |
|
|
| |
Operating Temp |
5-50 degree C |
|
|
| |
Operating Pressure |
6-8 bar |
|
|
| |
Power Supply |
230v Ac, 50 Hz +/- 10% |
|
|
| |
Applications |
Rice, Wheat, Pulses, Granules, Powder, Chemicals etc |
|
|
| |
Options |
Options:
PLC Based Controller, Printer Interface, Computer Interface, Remote Display, Higher Capacity, and Flame Proof
*Note : Accuracy and Number of fillings are based on the properties and flow characteristics of the material. |
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
Co2 Gas Filling System |
| |
We are leading designers, manufacturers, and suppliers of a variety of CO2 filling machine/decanting/liquid nitrous oxide filling machines in Gujarat. The company has over 35 years of experience in satisfying its clients by manufacturing finest range of CO2 filling machine/decanting/liquid nitrous oxide filling machine. |
|
| |
|
|
| |

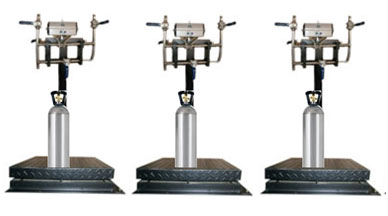

Carbon Dioxide (CO2) Filling Machine: |
This machine is useful to fill liquid carbon dioxide into cylinders. Machine has different weighing platforms as standard for easy operation i.e., during filling of cylinder on platform first operator can fix the cylinder on platform and once filling is over on platform 1, the machine changes over automatically and starts filling the cylinder on platform 2, hence pressure developed in the line can be avoided .The cycle is repeated for further operation. Some of the features of our carbon dioxide (CO2) filling machine are listed as below: |
|
| |
|
|
| |
 |
|
| |
|
|
| |
Features: |
|
|
| |
- PLC Based Control Panel
- User Friendly
- Data can be printed
- RS-232 Output
- Cumulative and Batch Records
- Key Board Calibration
- High Pressure SS 304 manifold with Evacuation Facility
|
|
| |
Capacity: |
|
|
|
| |
We can design, manufacture, and supply these machines as per customer's requirements at reasonable prices. |
|
|
|
| |
Liquid Filling Machine |
| |
|
|
| |
Features: |
|
|
| |
- Latest Micro Controller based design
- Rugged construction
- ADI Artech (USA) Make Heavy Duty Load cell for rough handling
- Stainless Steel Valve with Teflon coating
- Coarse and fine feed for better accuracy
- Auto calibration (thru Key Pad)
- High internal count greater than 2,00,000 counts
- Data retention in memory even power failure Gross/Net filling.
- Top Rollers and side roller conveyor for easy handling of drums
- In-Mouth filling & hence no spillage
- Local control panel for easy Operation.
|
Capacity |
Resolution |
100 Kg |
20 g |
200 Kg |
50 g |
300 Kg |
50 g |
500 Kg |
100 g |
|
|
| |
|
|
| |
Specifications: |
|
|
|
| |
- Fill Accuracy : Better than + / - 0.1% FSR
- Display : 0.5 mm height (7 segments LED)
- Load Sensor : Strain Gauge Based Load sensor
- Fill Mode : Auto/Manual
- No. of Fillings : 1 fillings per minute (Depends on the flow available)
- Fill Valve : SS with Teflon Lining
- Operating Temp : 5-50 degree C
- Operating Pressure : 6-8 bar
- Power Supply : 230v Ac, 50 Hz +/- 10%
- Platform Size (mm) : As per Customer Requirement.
|
 |
|
| |
|
|
| |
Applications: |
|
| |
Edible Oils, Lubricants, Paints, Chemicals & Other Liquids |
|
| |
Options: |
|
| |
Printer interface, Computer interface, Remote Display, Higher Capacity, Flame Proof |
|
| |
|
|
|
|
| |
|
|
|
|
|
|
|
|
| |
| |
| |
| |
|
|
|
